Closed Laser
ALO
CLOSED WELDING LASER SYSTEM: Manual and Multiangled Laser Beam
The ALO is a comfortable manual laser welding system that excels in performing manual laser for long components such as sensors within a shielded laser safety area.
Serves the following industries:
- Sensor and Manufacturing
- Dental and Medical
- Jewelry
If you want to weld long or bulky parts quickly, manually and flexibly or if you are looking for a simple loading of parts within a shielded laser safety area, the ALO is the ideal device for you.

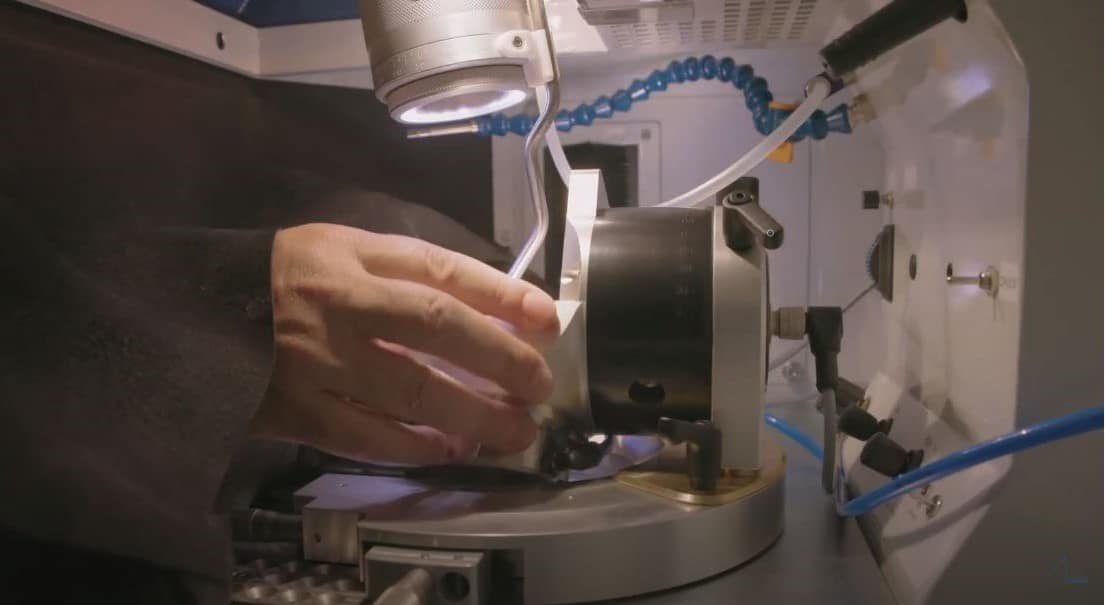

At the front, a large and wide opening of the working chamber allows for easy loading and unloading of workpiece. Easy positioning and safe welding of longer components efficiently and effectively.
An unique opening at the bottom of the working chamber also allows loading from below- Ideal for orbital welding of top caps.
All laser parameters can be adjusted within the working chamber fitted with an internal exhaust system.
Additional rotational chuck can be integrated with the ALO.
See the various rotational devices the ALO can intergrade with:
Technical Data:
| Laser type/wave length | Nd:YAG, 1,064 nm |
| Average power | 100W |
| Peak pulse power | 7 kW |
| Pulse energy | 60 J |
| Pulse duration | 0.5 ms – 20 ms |
| Welding spot ∅ | 0.2-2.0 mm |
| Pulse frequency | Single pulse 25 Hz |
| Focus setting | intergraded motoric |
| Pulse shaping | 3 presented pulse shapes |
| Programming memory | 39 parameter sets saveable |
| Cooling air nozzle | integrated |
| Protection gas supply | One fixed and one flexible protection gas nozzle, Can be locked and adjusted individually |
| Exhaustion | integrated H 14 |
| Rotating axis control | manual |
| Micro welding | option available |
| Work chamber with T-slot | not available |
| LED beam deflection unit Controller unit rotating axis | option available |
| Cooling connection | option available |
| Rotating axis manual | option available |
| Rotating axis pneumatic | not available |
| Micromanipulator | option available |
| Laser type/wave length | Nd:YAG, 1,064 nm |
| Average power | 120W |
| Peak pulse power | 10 kW |
| Pulse energy | 95 J |
| Pulse duration | 0.5 ms – 20 ms |
| Welding spot ∅ | 0.2-2.0 mm |
| Pulse frequency | 50 Hz |
| Focus setting | intergraded motoric |
| Pulse shaping | 3 presented pulse shapes |
| Programming memory | 39 parameter sets saveable |
| Cooling air nozzle | integrated |
| Protection gas supply | One fixed and one flexible protection gas nozzle, Can be locked and adjusted individually |
| Exhaustion | integrated H 14 |
| Rotating axis control | manuel |
| Micro welding | option available |
| Work chamber with T-slot | not available |
| LED beam deflection unit Controller unit rotating axis | option available |
| Controller unit rotating axis | option available |
| Cooling connection | option available |
| Rotating axis manual | option available |
| Rotating axis pneumatic | not available |
| Micromanipulator | option available |
| Laser type/wave length | Nd:YAG, 1,064 nm |
| Average power | 120W |
| Peak pulse power | 10 kW |
| Pulse energy | 95 J |
| Pulse duration | 0.5 ms – 20 ms |
| Welding spot ∅ | 0.2-2.0 mm |
| Pulse frequency | 50 Hz |
| Focus setting | intergraded motoric |
| Pulse shaping | 10 fixed/ 10 programable |
| Programming memory | 50 parameter sets saveable |
| Cooling air nozzle | integrated |
| Protection gas supply | one fixed and one flexible protection gas nozzle, Can be locked and adjusted individually |
| Exhaustion | integrated H 14 |
| Rotating axis control | programable via SPS |
| Micro welding | option available |
| Work chamber with T-slot | Fitted as standard |
| LED beam deflection unit Controller unit rotating axis | Fitted as standard |
| Controller unit rotating axis | Fitted as standard |
| Cooling connection | option available |
| Rotating axis manual | option available |
| Rotating axis pneumatic | option available |
| Micromanipulator | option available |
